Mi-T-M
HEG Series
| Model Number | PSI | GPM | Horsepower/Motor | BTU Natural | BTU LP | Dimensions | Ship Wt. | Net Wt. |
|---|---|---|---|---|---|---|---|---|
| HEG-1805-0E2G | 1800 | 4.7 | 6.0 HP/230V, 1¯, 25.5A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-1805-0E3G | 1800 | 4.7 | 6.0 HP/230V, 3¯, 16.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-1805-0E4G | 1800 | 4.7 | 6.0 HP/460V, 3¯, 8.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-1805-0E8G | 1800 | 4.7 | 6.0 HP/208V, 1¯, 28.2A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-1805-0E9G | 1800 | 4.7 | 6.0 HP/208V, 3¯, 18.5A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-2004-0E2G | 2000 | 4.2 | 6.0 HP/230V, 1¯, 25.5A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-2004-0E3G | 2000 | 4.2 | 6.0 HP/230V, 3¯, 16.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-2004-0E3G | 2000 | 4.2 | 6.0 HP/230V, 3¯, 16.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-2004-0E4G | 2000 | 4.2 | 6.0 HP/460V, 3¯, 8.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-2004-0E8G | 2000 | 4.2 | 6.0 HP/208V, 1¯, 28.2A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-2004-0E9G | 2000 | 4.2 | 6.0 HP/208V, 3¯, 18.5A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 844 lb. | 724 lb. |
| HEG-3004-0E2G | 3000 | 3.9 | 8.0 HP/230V, 1¯, 37.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3004-0E3G | 3000 | 3.9 | 8.0 HP/230V, 1¯, 37.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3004-0E4G | 3000 | 3.9 | 8.0 HP/230V, 1¯, 37.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3004-0E5G | 3000 | 4.9 | 8.0 HP/575V, 3¯, 8.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3004-0E8G | 3000 | 3.9 | 8.0 HP/208V, 1¯, 40.5A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3004-0E9G | 3000 | 3.9 | 8.0 HP/208V, 3¯, 23.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3005-0E2G | 3000 | 4.8 | 10.0 HP/230V, 1¯, 44.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3005-0E3G | 3000 | 4.8 | 10.0 HP/230V, 3¯, 25.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3005-0E4G | 3000 | 4.8 | 10.0 HP/460V, 3¯, 12.5A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3005-0E5G | 3000 | 4.8 | 10.0 HP/575V, 3¯, 10.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3005-0E8G | 3000 | 4.8 | 10.0 HP/208V, 1¯, 48.7A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
| HEG-3005-0E9G | 3000 | 4.8 | 10.0 HP/208V, 3¯, 29.0A | 338,000 | 326,000 | 56.5in.x29in.x49.75in. | 878 lb. | 758 lb. |
HHS Series
| Model Number | PSI | GPM | Horsepower/Motor | Plug Type | Fuel Cons. | BTU Per HR | Dimensions | Ship Wt. | Net. Wt. |
|---|---|---|---|---|---|---|---|---|---|
| HHS-1003-2E1G | 1000 | 2.8 | 2.0 HP, 120V, 10, 20.0A | NEMA 5-20P | 1.84 gph | 257,600 | 57in.x30in.x41.5in. | 610 lb. | 490 lb. |
| HHS-2004-2E2A | 2000 | 4.2 | 6.0 HP, 230V, 10, 28.0A | NEMA 6-30P | 2.76 gph | 386,400 | 57in.x30in.x41.5in. | 670 lb. | 550 lb. |
| HHS-2004-2E2G | 2000 | 4.2 | 6.0 HP, 230V, 10, 28.0A | NEMA 6-30P | 2.76 gph | 386,400 | 57in.x30in.x41.5in. | 670 lb. | 550 lb. |
| HHS-2004-2E3G | 2000 | 4.2 | 6.0 HP, 230V, 30, 18.5A | NEMA L15-20P | 2.76 gph | 386,400 | 57in.x30in.x41.5in. | 670 lb. | 550 lb. |
| HHS-2004-2E4G | 2000 | 4.2 | 6.0 HP, 460V, 30, 12.0A | NEMA L16-20P | 2.76 gph | 386,400 | 57in.x30in.x41.5in. | 670 lb. | 550 lb. |
| HHS-2004-2E8G | 2000 | 4.2 | 6.0 HP, 208V, 10, 30.7A | NEMA 6-50P | 2.76 gph | 386,400 | 57in.x30in.x41.5in. | 670 lb. | 550 lb. |
| HHS-2004-2E9G | 2000 | 4.2 | 6.0 HP, 208V, 30, 21.0A | NEMA L15-30P | 2.76 gph | 386,400 | 57in.x30in.x41.5in. | 670 lb. | 550 lb. |
| HHS-3004-2E2A | 3000 | 3.9 | 8.0 HP, 230V, 10, 39.5A | NEMA 6-50P | 2.14 gph | 341,800 | 57in.x30in.x41.5in. | 700 lb. | 580 lb. |
| HHS-3004-2E2G | 3000 | 3.9 | 8.0 HP, 230V, 10, 39.5A | NEMA 6-50P | 2.14 gph | 341,800 | 57in.x30in.x41.5in. | 700 lb. | 580 lb. |
| HHS-3004-2E3G | 3000 | 3.9 | 8.0 HP, 230V, 30, 22.5A | NEMA L15-30P | 2.14 gph | 341,800 | 57in.x30in.x41.5in. | 700 lb. | 580 lb. |
| HHS-3004-2E4G | 3000 | 3.9 | 8.0 HP, 460V, 30, 14.0A | NEMA L16-20P | 2.14 gph | 341,800 | 57in.x30in.x41.5in. | 700 lb. | 580 lb. |
| HHS-3004-2E5G | 3000 | 3.9 | 8.0 HP, 575V, 30, 12.0A | NEMA L17-30P | 2.14 gph | 341,800 | 57in.x30in.x41.5in. | 700 lb. | 580 lb. |
| HHS-3004-2E8G | 3000 | 3.9 | 8.0 HP, 208V, 10, 43.0A | NEMA 6-50P | 2.14 gph | 341,800 | 57in.x30in.x41.5in. | 700 lb. | 580 lb. |
| HHS-3004-2E9G | 3000 | 3.9 | 8.0 HP, 208V, 30, 25.5A | NEMAL15-30P | 2.14 gph | 341,800 | 57in.x30in.x41.5in. | 700 lb. | 580 lb. |
| HHS-3005-2E2G | 3000 | 4.8 | 10.0 HP, 230V, 10, 46.5A | NEMA 6-50P | 3.06 gph | 428,400 | 57in.x30in.x41.5in. | 704 lb. | 584 lb. |
| HHS-3005-2E3G | 3000 | 4.8 | 10.0 HP, 230V, 30, 27.5A | NEMA L15-30P | 3.06 gph | 428,400 | 57in.x30in.x41.5in. | 704 lb. | 584 lb. |
| HHS-3005-2E4G | 3000 | 4.8 | 10.0 HP, 460V, 30, 16.5A | NEMA L16-20P | 3.06 gph | 428,400 | 57in.x30in.x41.5in. | 704 lb. | 584 lb. |
| HHS-3005-2E5G | 3000 | 4.8 | 10.0 HP, 575V, 30, 14.0A | NEMA L17-30P | 3.06 gph | 428,400 | 57in.x30in.x41.5in. | 704 lb. | 584 lb. |
| HHS-3005-2E8G | 3000 | 4.8 | 10.0 HP, 208V, 10, 50.7A | NEMA 6-50P | 3.06 gph | 428,400 | 57in.x30in.x41.5in. | 704 lb. | 584 lb. |
| HHS-3005-2E9G | 3000 | 4.8 | 10.0 HP, 208V, 30, 31.5A | NEMA L15-50P | 3.06 gph | 428,400 | 57in.x30in.x41.5in. | 704 lb. | 584 lb. |
HDS Series
| Model Number | PSI | GPM | Displacement/Engine | Gas Tank Cap. | Burner Fuel Cap. | BTU Per HR | Fuel Comp. | Dimensions | Ship Wt. | Net. Wt. |
|---|---|---|---|---|---|---|---|---|---|---|
| HDS-3005-0V6G | 3000 | 4.8 | 480cc Vanguard OHV | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HDS-3005-0V6G | 3000 | 4.8 | 480cc Vanguard OHV | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HDS-3008-1H6G | 3000 | 7.8 | GX690 Honda OHV | 10.0 gallon | 10.0 gallon | 513,800 | 3.67 gph | 50in.x34in.x46in. | 934 lb. | 830 lb. |
| HDS-3008-0K6G | 3000 | 7.8 | 725cc Kohler | 10.0 gallon | 10.0 gallon | 513,800 | 3.67 gph | 50in.x34in.x46in. | 934 lb. | 854 lb. |
| HDS-3505-1H6G | 3500 | 4.7 | GX630 Honda OHV | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HDS-3505-0K6G | 3500 | 4.7 | 624cc Kohler | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HDS-3505-0V6G | 3500 | 4.7 | 627cc Vanguard OHV | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HDS-3506-1H6G | 3500 | 5.6 | GX630 Honda OHV | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HDS-3506-0K6G | 3500 | 5.6 | 725cc Kohler | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HDS-4005-2H6G | 4000 | 5 | GX630 Honda OHV | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 50in.x34in.x46in. | 854 lb. | 750 lb. |
HDS Series (Diesel Models)
| Model Number | PSI | GPM | Displacement/Engine | Gas Tank Cap. | Burner Fuel Cap. | BTU Per HR | Fuel Comp. | Dimensions | Ship Wt. | Net. Wt. |
|---|---|---|---|---|---|---|---|---|---|---|
| HDS-3006-0B7G | 3000 | 5.6 | 15.5 HP Kubota | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 56.5in.x31in.x46in. | 940 lb. | 836 lb. |
| HDS-4005-0B7G | 4000 | 4.5 | 15.5 HP Kubota | 10.0 gallon | 10.0 gallon | 471,800 | 3.37 gph | 56.5in.x31in.x46in. | 940 lb. | 836 lb. |
HVS Series
| Model Number | PSI | GPM | Displacement/Engine | Gas Tank Cap. | Burner Fuel Cap. | Fuel Comp. | BTU Per HR | Dimensions | Ship Wt. | Net. Wt. |
|---|---|---|---|---|---|---|---|---|---|---|
| HVS-3005-0V6G | 3000 | 4.8 | 480cc Vanguard OHV | 10.0 gallon | 10.0 gallon | 3.37 gph | 471,800 | 50in.x34in.x46in. | 816 lb. | 710 lb. |
| HVS-3008-1H6G | 3000 | 7.8 | GX690 Honda OHV | 10.0 gallon | 10.0 gallon | 3.67 gph | 513.8 | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HVS-3505-1H6G | 3500 | 4.7 | GX630 Honda OHV | 10.0 gallon | 10.0 gallon | 3.37 gph | 471,800 | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HVS-3505-0K6G# | 3500 | 4.7 | 624cc Kohler | 10.0 gallon | 10.0 gallon | 3.37 gph | 471,800 | 50in.x34in.x46in. | 854 lb. | 750 lb. |
| HVS-3506-1H6G | 3500 | 5.6 | GX630 Honda OHV | 10.0 gallon | 10.0 gallon | 3.37 gph | 471,800 | 50in.x34in.x46in. | 864 lb. | 760 lb. |
| HVS-3506-0K6G | 3500 | 5.6 | 725cc Kohler | 10.0 gallon | 10.0 gallon | 3.37 gph | 471,800 | 50in.x34in.x46 in. | 864 lb. | 760 lb. |
HVS Series (Diesel Models)
| Model Number | PSI | GPM | Displacement/Engine | Gas Tank Cap. | Burner Fuel Cap. | Fuel Comp. | BTU Per HR | Dimensions | Ship Wt. | Net. Wt. |
|---|---|---|---|---|---|---|---|---|---|---|
| HVS-3006-0B7G | 3000 | 5.6 | 15.5 HP Kubota | 10.0 gallon | 10.0 gallon | 3.37 gph | 471,800 | 56.5in.x31in.x46in. | 940 lb. | 836 lb. |
| HVS-4005-0B7G | 4000 | 4.5 | 15.5 HP Kubota | 10.0 gallon | 10.0 gallon | 3.37 gph | 471,800 | 56.5in.x31in.x46in. | 940 lb. | 836 lb. |
HGM Series
| Model Number | PSI | GPM | Natural Gas BTU | LP Gas BTU | Dimensions | Ship Wt. | Net. Wt. |
|---|---|---|---|---|---|---|---|
| HGM-3506-0E10 | 3500 | 6 | 338,000 per hr. | 326,500 per hr. | 24.25in.x26.25in.x49.75in. | 466 lb. | 346 lb. |
| HGM-3508-0E10 | 3500 | 8 | 650,000 per hr. | 619,500 per hr. | 34.5in.x34.75in.x54.5in. | 767 lb. | 707 lb. |
HHM Series
| Model Number | PSI | GPM | Voltage/Phase/Amp | Burner Fuel Cons. | BTU Per Hour - Diesel | Dimensions | Ship Wt. | Net. Wt. |
|---|---|---|---|---|---|---|---|---|
| HHM-3506-0E10 | 3500 | 6 | 115V, 1¯, 3.2A | 2.76 gph | 386,400 | 56.5in.x30in.x41.5in. | 543 lb. | 423 lb. |
CW-2004-SME1
PSI
2000
GPM
3.9
HP/Motor
6.0 HP/230V, 1Ø, 22.0A
Plug Type
NEMA 6-30P
Weights & Dimensions
Net Weight
214 lbs.
Shipping Weight
272 lbs.
Length
29.5 in.
Width
20.5 in.
Height
15 in.
CA-3504-1MHB
PSI
3500
GPM
3.7
Displacement/Engine
389cc Honda OHV
Pump
AR
Mi-T-M Number
3-0310
Nozzle
0°, 15°, & 25°
Lance
48 in.
Weights & Dimensions
Net Weight
125 lbs.
Shipping Weight
175 lbs.
Length
42.5 in.
Width
23.5 in.
Height
24.5 in.

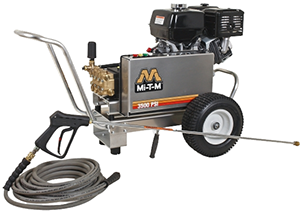

CBA-3504-1MHB
PSI
3500
GPM
3.7
Displacement/Engine
389cc Honda OHV
Pump
AR
Mi-T-M Number
3-0308
Nozzle
0°, 15°, 25° & 40°
Lance
48 in.
Weights & Dimensions
Net Weight
165 lbs.
Shipping Weight
215 lbs.
Length
47 in.
Width
27.5 in.
Height
28.5 in.
CWC-3008-3MGH
PSI
3000
GPM
8
Displacement/Engine
688cc Honda OHV
Pump
Generatl
Mi-T-M Number
3-0279
Nozzle
0°, 15°, 25° & 40°
Lance
48 in.
Weights & Dimensions
Net Weight
408 lbs.
Shipping Weight
531 lbs.
Length
43 in.
Width
27.75 in.
Height
36 in.
